Azure AKS deployment guide for Maia runners

​

What you get with AKS deployment

• Managed Kubernetes control plane. Azure handles the Kubernetes API server, etcd, and control plane upgrades.
• Workload Identity/Managed Identity. Allows credential-free authentication to Azure services.
• Flexible node pools. VM scale sets with configurable instance types.
• Azure integration. Native support for Azure Monitor, VNet networking, and Azure Load Balancers.
• Horizontal Pod Autoscaler. Scale pods based on metrics.
• Cluster Autoscaler. Automatically adjust VM capacity in node pools.

​

When to choose AKS

• You have existing Azure infrastructure and expertise.
• You need Managed Identity for secure, credential-free access to Azure services (Storage, Key Vault).
• You require integration with Azure monitoring and security tools (Azure Monitor, Sentinel).
• You want Kubernetes operational flexibility with Azure managed services.
• You plan to deploy s across multiple availability zones for high availability.

​

Prerequisites and readiness

​

Azure account requirements

• Azure Kubernetes Service enabled in your subscription.
• Sufficient VM quotas for worker nodes.
• Virtual Network (VNet) with subnet configuration.

• Create and manage AKS clusters and node pools.
• Create and manage virtual machines and VM scale sets.
• Create Managed Identities and role assignments.
• Manage VNet resources (subnets, route tables, network security groups).
• Access Azure Key Vault (for storing OAuth credentials).
• Create Storage Accounts (for staging data).
• Configure Azure Monitor and Log Analytics.

​

Maia account setup

• Account ID: Your Matillion organization identifier.
• Runner ID: The unique identifier for this (auto-generated).
• OAuth Client ID and Secret: authentication credentials
• Region: us1 (United States), eu1 (Europe), or au1 (Australia/Asia-Pacific).

​

Required tools

• Terraform 1.0+ for infrastructure provisioning.
• Azure CLI configured with credentials (az login).
• kubectl for Kubernetes cluster management.
• Helm 3.x for application deployment.

# Verify Azure CLI authentication
az account show

# Verify tool versions
terraform --version
kubectl version --client
helm version

​

Architecture decision points

​

1. VNet strategy

​

2. Subnet strategy

​

3. Public vs private cluster

• Deployment workstation has VPN or bastion access to VNet.
• CI/CD runners can access cluster API server.
• Authorized IP ranges include your access points.

​

4. Authentication strategy

• Workload Identity (recommended for AKS 1.25+):
  • pods authenticate to Azure using federated identity credentials.
  • No secrets stored in cluster.
  • Azure AD-backed, automatic token rotation.
  • Best-practice security model for AKS.
• Managed Identity (Azure AD Pod Identity):
  • pods assume Managed Identity without storing credentials.
  • Supports AKS clusters older than 1.25.
  • Automatic credential rotation by Azure.
  • Terraform module can configure either approach.
• Static OAuth Credentials:
  • OAuth credentials stored in Kubernetes Secrets.
  • Use only if identity-based authentication unavailable (not recommended for AKS).

​

5. Node pool strategy

• Transformation-heavy workloads: SQL generation tasks, low CPU usage → Smaller VMs sufficient.
• Data ingestion/scripting workloads: High data transfer, processing on → Larger VMs needed.
• Pod density: Larger VMs allow more pods per node, reducing operational overhead.

​

6. Scaling strategy

• Fixed number of pods (e.g., 2, 5, 10).
• Predictable capacity and costs.
• Suitable for steady-state workloads.

• Automatically scales pods based on workload metrics.
• Configure min/max replicas (e.g. min: 2, max: 10).
• Responds to workload spikes dynamically.

• Automatically adds/removes VMs in node pool based on pod scheduling needs.
• Works in tandem with HPA.
• Optimizes infrastructure costs.

​

Container images

• :stable - Slower release cycle, maximum stability, recommended for production.
• :current - Faster release cycle, earlier access to new features.

​

Deployment journey

​

Expected timeline

• Phase 1 — registration: 10 minutes (Matillion console).
• Phase 2 — Infrastructure provisioning: 15-20 minutes (Terraform: VNet, AKS cluster, Managed Identity).
• Phase 3 — Configure kubectl access: 2 minutes (Azure CLI + kubectl).
• Phase 4 — deployment: 5-10 minutes (Helm chart).
• Phase 5 — Validation: 15-30 minutes (Pre-deployment checks + testing).

​

Phase 1: Maia runner registration (Matillion console)

• Account ID.
• ID.
• OAuth Client ID and Secret.
• Region (us1, eu1, or au1).

​

Phase 2: Infrastructure provisioning (Terraform)

1. Azure AKS cluster:
   • Managed Kubernetes control plane (API server, etcd, controller manager).
   • AKS-managed upgrades and patching.
   • Azure Monitor integration for control plane logs.
2. Node pools:
   • VM scale set with configurable VM sizes.
   • Azure-managed node lifecycle and upgrades.
   • Kubernetes node labels and taints (if configured).
3. Managed Identity/Workload Identity:
   • User-assigned Managed Identity for workloads.
   • Role assignments for Storage Account access and Key Vault access.
   • Federated identity credentials (for Workload Identity).
4. VNet and networking (if creating new):
   • Virtual Network with subnets across availability zones.
   • Network security groups for cluster communication.
   • Route tables for outbound connectivity.
5. Network security groups:
   • Rules for control plane and node communication.
   • HTTPS outbound to Matillion control plane.

• azure_subscription_id: Your Azure subscription ID.
• azure_tenant_id: Your Azure AD tenant ID.
• resource_group_name: Resource group name (for example, matillion-agent-rg).
• location: Azure region (for example, East US, West Europe).
• name: Cluster name prefix (for example, matillion-agent).
• vm_size: Node pool VM size (for example, Standard_D4s_v4).
• desired_node_count: Initial node count (for example, 3).
• is_private_cluster: true or false.
• authorized_ip_ranges: List of CIDRs allowed to access API server.
• workload_identity_enabled: true (recommended) or false.
• tags: Resource tags for cost allocation.

terraform output cluster_name
terraform output managed_identity_client_id

​

Phase 3: Configure kubectl access

az aks get-credentials --resource-group <resource-group> --name <cluster-name>

kubectl get nodes
kubectl get namespaces

​

Phase 4: Maia runner deployment (Helm)

1. pods:
   • Deployment with configurable replica count (default: 2).
   • Each pod runs the Matillion binary.
   • Resource requests and limits for CPU and memory.
2. ServiceAccount:
   • Kubernetes ServiceAccount configured for Workload Identity or Managed Identity.
   • Annotated with Managed Identity client ID (from Phase 2).
3. ConfigMaps:
   • configuration (account ID, ID, region).
   • Environment-specific settings.
4. Secrets:
   • OAuth Client ID and Secret for Matillion control plane authentication.
5. Service:
   • Kubernetes service exposing Prometheus metrics endpoint (port 8080).
   • Annotated for Prometheus service discovery.

• Helm chart documentation.
• values.yaml reference.

​

Phase 5: Validation and testing

# From deployment library root
./agent/helm/checks/run-check.sh --namespace matillion --release matillion-agent

• Python 3 and Java runtime available.
• Filesystem permissions correct.
• Environment variables set (ACCOUNT_ID, AGENT_ID, etc.).
• cgroup CPU and memory limits applied.
• Network connectivity to Matillion control plane.
• Security agents that might interfere (Crowdstrike, Prisma Cloud).

1. Matillion Console: Navigate to Manage runners. Verify status shows “Connected”.
2. Test pipeline: Create a simple pipeline (for example, “Hello World” transformation) and execute.
3. Prometheus metrics: Verify metrics available at http://<pod-ip>:8080/actuator/prometheus.

• Log Analytics workspace query: ContainerLog|where PodName contains "matillion-agent".

​

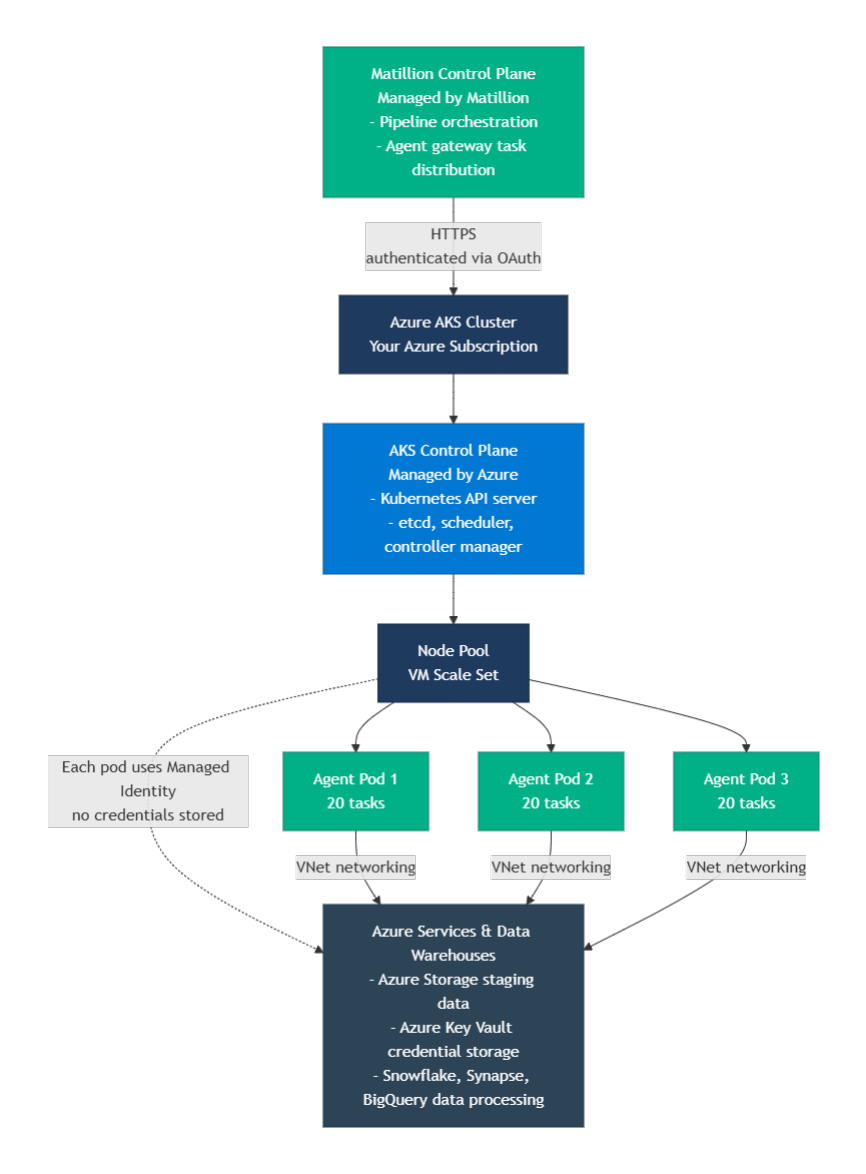

Maia runner architecture on AKS

​

Workload Identity / Managed Identity

1. Kubernetes ServiceAccount is annotated with Managed Identity client ID.
2. AKS OIDC Issuer allows Kubernetes to issue tokens trusted by Azure AD.
3. pod requests Azure AD token using projected service account token.
4. Azure AD exchanges token for access token (valid 1 hour, auto-refreshed).
5. accesses Azure services (Storage, Key Vault) without storing credentials.

• No long-lived credentials in cluster.
• Automatic token rotation (every hour).
• Least-privilege access (Managed Identity scoped to specific resources).
• Pod-level isolation (each pod authenticates independently).

• User-assigned Managed Identity.
• Federated identity credential (Workload Identity).
• Role assignments for Storage Account, Key Vault.
• AKS cluster OIDC issuer configuration.

​

Task capacity and throughput

• 2 pods (default) = 40 concurrent tasks.
• 5 pods = 100 concurrent tasks.
• 10 pods = 200 concurrent tasks.

• For transformation workloads: Tasks generate SQL executed by data warehouse. CPU/memory usage is low. Fewer pods needed.
• For data ingestion workloads: Tasks transfer and process data on . CPU/memory usage is high. More pods needed.

​

Monitoring and observability

​

Native Prometheus metrics

• Endpoint: http://<pod-ip>:8080/actuator/prometheus.
• Service: Automatically created by Helm chart with Prometheus annotations.

• app_version_info: version and build metadata.
• app_agent_status: status (1 = running, 0 = stopped).
• app_active_task_count: Current number of executing tasks.

prometheus.io/scrape: "true"
prometheus.io/port: "8080"
prometheus.io/path: "/actuator/prometheus"

​

Azure Monitor integration

• Cluster-level metrics (CPU, memory, network).
• Pod-level metrics (resource usage per pod).
• Node-level metrics (VM health, disk usage).

• Centralized log aggregation across all pods.
• Query with Kusto Query Language (KQL).
• Set up alerts on error patterns.

• pod restarts > threshold.
• pods in CrashLoopBackOff state.
• Task execution failures (requires custom metric from logs).
• Node pool CPU/memory > 80%.

​

Security best practices

​

Network security

• Deploy pods in private subnets for enhanced security.
• Use NAT Gateway or default route for outbound internet access (required for Matillion control plane).
• Restrict network security groups to minimum required ingress/egress.

• HTTPS (443) to Matillion control plane (region-specific endpoints).
• HTTPS/JDBC to your relevant data warehouse endpoints.
• HTTPS (443) to Azure APIs (Storage, Key Vault, Azure AD for Workload Identity).
• HTTP (80) to Snowflake endpoints.
• HTTPS (443) to all other required specific endpoints.

• Ingress: No inbound traffic required ( initiates all connections).

• API server accessible only from VNet (or authorized VPN/bastion).
• Requires VPN or Azure Bastion for kubectl access.
• CI/CD pipelines need VNet connectivity or VPN access.

​

Pod security standards

• Run as non-root user (UID 65534).
• Read-only root filesystem.
• No privilege escalation.
• Drop all Linux capabilities.
• Seccomp profile: RuntimeDefault.

securityContext:
  runAsNonRoot: true
  runAsUser: 65534
  fsGroup: 65534
  seccompProfile:
    type: RuntimeDefault

containers:
  - securityContext:
      allowPrivilegeEscalation: false
      capabilities:
        drop: ["ALL"]

​

Secrets management

• Azure Key Vault (recommended):
  • Store OAuth credentials in Azure Key Vault.
  • Use External Secrets Operator or Azure Key Vault Provider for CSI Driver to sync to Kubernetes Secrets.
  • Automatic rotation support.
  • Centralized secret management across environments.
• Kubernetes Secrets (default):
  • Credentials provided via Helm values.
  • Stored as base64-encoded Kubernetes Secret.
  • Not encrypted at rest by default (enable Azure Disk encryption).

​

Scaling considerations

​

When to scale

• Task queue depth consistently > 0 (check the Task history or metrics).
• Pipeline execution time increases due to task queuing.
• More concurrent pipelines being executed.
• Workload characteristics change (more data ingestion vs transformation).

• Task queue depth consistently = 0.
• Pipeline execution times stable.
• Workload primarily transformation (SQL generation).

​

Horizontal Pod Autoscaler (HPA)

• Kubernetes HPA monitors pod metrics.
• Automatically scales Deployment replicas within configured min/max range.
• Evaluates every 15 seconds (default), scales up/down based on thresholds.

• Min replicas: 2 (baseline availability).
• Max replicas: 10 (cost control).

​

Cluster autoscaler

• Monitors pods in Pending state (unable to schedule due to insufficient node capacity).
• Automatically adds VMs to node pool (VM Scale Set).
• Removes underutilized nodes after 10 minutes of low usage.

1. HPA scales pods based on metrics.
2. If pods can’t schedule (no node capacity), cluster autoscaler adds VMs.
3. pods schedule on new VMs.
4. When load decreases, HPA scales down pods, cluster autoscaler removes empty VMs.

​

Vertical scaling

• Useful when individual tasks require more resources than current pod limits.
• Requires pod restart to apply new resource limits.
• Consider workload characteristics (transformation vs ingestion).

​

Cost optimization

​

Cost optimization strategies

• Right-size VMs: Match VM type to workload (transformation-heavy = smaller, ingestion-heavy = larger).
• Use Cluster Autoscaler: Automatically remove unused VMs during low-usage periods.
• Consider Azure Reserved Instances: For predictable baseline capacity (1-year or 3-year commitment).
• Monitor data transfer: Ensure data warehouses in same region to avoid cross-region charges.

​

Additional resources

​

Implementation and deployment

• Azure directory.
• AKS Terraform module.
• Helm charts.

​

General Kubernetes guide

​

Matillion documentation

• For deployment models, read overview.
• For registration, read Create a .
• For capacity planning, read Scaling best practices.

​

Azure documentation

• For AKS concepts and operations, read Azure Kubernetes service documentation.
• For Azure AD Workload Identity for AKS, read Workload Identity.
• For automatic node scaling, read AKS Cluster Autoscaler.
